Condensing Boilers
Floor Type Condensing Boilers

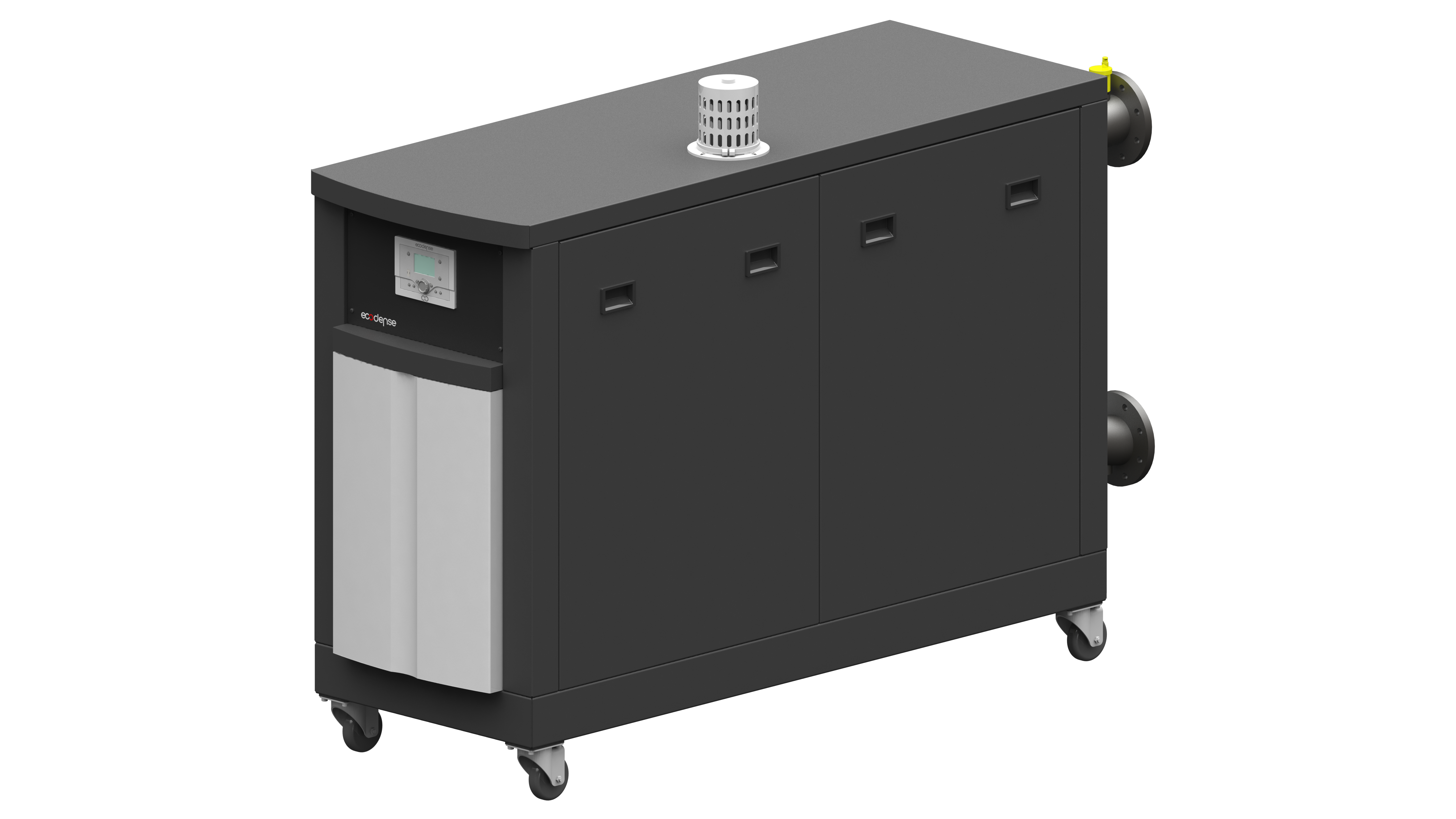

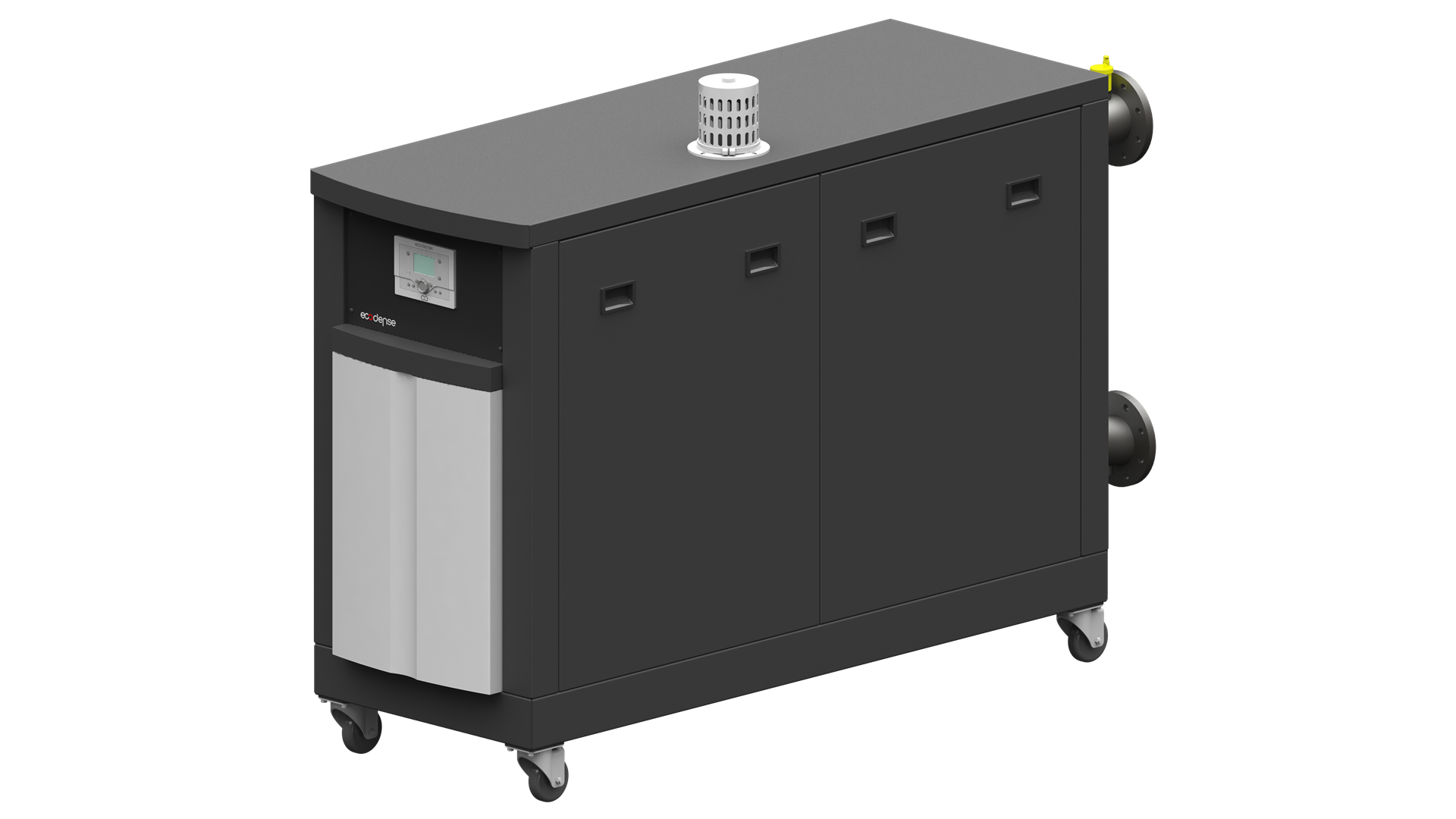

FTC-X Plus Series
- High thermal efficiency with Premix condensation technology and micro-flame metal fiber coated steel burner,
- Al-Mg-Si alloy cast casing exchanger that provides high operating efficiency with high heat transfer,
- 9 different capacities from 230 kW to 840 kW in individual boilers, wide thermal capacity options up to 13.440 kW in cascade systems,
- Allows cascade connection up to total 16 boilers, including 1 master and 15 slave boilers,
- Energy saving through 5:1 modulating operation,
- Illuminated LCD panel for ease of use,
- Daily and weekly operation schedule can be programmed,
- Seasonal heat programming during summer and winter times,
- Option of use with Natural gas and LPG,
- Space advantage in boiler room planning and conversions with its compact structure,
- Operation at lower noise values,
- Ease of transportation thanks to the wheels placed under the boiler,
- Eco-friendly heating systems with low NOx and CO emission rates,
- Easy maintenance.
| TECHNICAL SPECIFICATIONS | Unit | FTC-X 200 PLUS |
FTC-X 270 PLUS |
FTC-X 340 PLUS |
FTC-X 410 PLUS |
FTC-X 480 PLUS |
FTC-X 550 PLUS |
FTC-X 680 |
FTC-X 760 |
FTC-X 840 |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thermal Capacity | |||||||||||||||
| Maximum Heating Capacity | kW | 230 | 300 | 380 | 450 | 530 | 605 | 680 | 760 | 840 | |||||
| Minimum Heating Capacity | kW | 32 | 40 | 50 | 60 | 65 | 65 | 90 | 105 | 115 | |||||
| Maximum Heat Output (80°C / 60°C) | kW | 214 | 285 | 356 | 429 | 498 | 570 | 643 | 713 | 788 | |||||
| Minimum Heat Output (80°C / 60°C) | kW | 23 | 31 | 39 | 44 | 55 | 62 | 70 | 84 | 93 | |||||
| Maximum Heat Output (50°C / 30°C) | kW | 230 | 305 | 380 | 455 | 530 | 605 | 680 | 762 | 848 | |||||
| Minimum Heat Output (50°C / 30°C) | kW | 26 | 35 | 43 | 49 | 61 | 69 | 78 | 93 | 102 | |||||
| Thermal Efficiency | |||||||||||||||
| Efficiency @ Pmax. (80°C / 60°C) | % | 97,2 | 97,5 | 97,8 | 97,5 | 97,8 | 97,5 | 97,4 | 97,6 | 97,7 | |||||
| Efficiency @ Pmin. (80°C / 60°C) | % | 96,5 | 96,3 | 96,7 | 96,4 | 96,7 | 96,8 | 96,4 | 96,8 | 96,5 | |||||
| Efficiency @ Pmax. (50°C / 30°C) | % | 104,2 | 104,5 | 104,2 | 104,3 | 104,2 | 104,1 | 104,3 | 104,2 | 104,5 | |||||
| Efficiency @ Pmin. (50°C / 30°C) | % | 107,2 | 107,3 | 107,4 | 107,3 | 107,3 | 107,5 | 107,4 | 107,5 | 107,6 | |||||
| Efficiency @ %30 (30°C) | % | 108,4 | 108,5 | 108,2 | 108,9 | 108,5 | 108,9 | 108,5 | 108,6 | 108,7 | |||||
| Domestic Hot Water Circuit | |||||||||||||||
| Temperature adjustment range with external storage tank usage | °C | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | |||||
| Central Heating Circuit | |||||||||||||||
| Maximum Operating Temperature | °C | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | |||||
| Water Volume | L | 20,5 | 24,8 | 28,9 | 35,46 | 36,9 | 47,15 | 48,6 | 53,3 | 58 | |||||
| Maximum Operating Pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||
| Minimum Operating Pressure | bar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| Water Resistance ΔT = 20 °C | mbar | 50 | 55 | 60 | 65 | 70 | 75 | 85 | 90 | 100 | |||||
| Gas Specifications | |||||||||||||||
| Gas Type | - | G20-G31 | G20-G31 | G20-G31 | G20-G31 | G20-G31 | G20-G31 | G20-G31 | G20-G31 | G20-G31 | |||||
| Gas Inlet Pressure (G20) | mbar | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |||||
| Gas Inlet Pressure (G31) | mbar | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 | |||||
| Maximum gas consumption | Nm³/h | 23,98 | 31,27 | 39,61 | 46,91 | 55,25 | 63,07 | 70,88 | 79,22 | 87,56 | |||||
| Minimum gas consumption | Nm³/h | 3,34 | 4,17 | 5,21 | 6,25 | 6,78 | 6,78 | 9,38 | 10,95 | 11,99 | |||||
| Fan Pressure | |||||||||||||||
| Waste Gas Pressure at Full Load | Pa | 190 | 200 | 230 | 200 | 220 | 250 | 250 | 250 | 250 | |||||
| Combustion Specifications | |||||||||||||||
| Maximum Flue Gas Temperature (80/60 °C) | °C | 73,9 | 75,1 | 75,1 | 76,0 | 75,1 | 75,1 | 75,1 | 75,3 | 75,6 | |||||
| Minimum Flue Gas Temperature (80/60 °C) | °C | 55,9 | 58,7 | 58,7 | 58,3 | 58,7 | 58,7 | 58,7 | 58,7 | 58,8 | |||||
| Maximum Flue Gas Temperature (50/30 °C) | °C | 53,5 | 54,1 | 54,1 | 54,8 | 54,1 | 54,1 | 54,1 | 53,9 | 53,8 | |||||
| Minimum Flue Gas Temperature (50/30 °C) | °C | 30,2 | 30,5 | 30,5 | 30,5 | 30,5 | 30,5 | 30,5 | 30,5 | 30,7 | |||||
| Flue Gas Mass Flow Rate | kg/s | 0,1031 | 0,1291 | 0,16 | 0,175 | 0,198 | 0,261 | 0,254 | 0,2837 | 0,3134 | |||||
| NOx Emission Class (EN 15502-1+A1) | - | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||
| Electrical Specifications | |||||||||||||||
| Electrical Supply | V / Hz | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | |||||
| Protection Class | IP | X4D | X4D | X4D | X4D | X4D | X4D | X4D | X4D | X4D | |||||
| Energy Consumption | W | 260 | 260 | 280 | 210 | 350 | 400 | 520 | 600 | 670 | |||||
| Fuse Current | A | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||
| Circuit Specifications | |||||||||||||||
| Condensation Connection Pipe Diameter | Ø | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |||||
| Gas Connection Diameter | Ø | 1 1/2" | 1 1/2" | 1 1/2" | 2" | 2" | 2" | 2" | 2" | 2" | |||||
| Central Heating Circuit Inlet/Outlet Diameter | Ø | 3" | 3" | 3" | 3" | 3" | 3" | 3" | 3" | 3" | |||||
| General Specifications | |||||||||||||||
| Net Weight | kg | 240 | 266 | 300 | 336 | 392 | 396 | 430 | 452 | 474 | |||||
| Flue Diameter (Ø) | mm | 160 | 160 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||||
| G 20 Natural Gas, G 31 LPG | |||||||||||||||
| MODEL | W (mm) |
H (mm) |
D (mm) |
|---|---|---|---|
| FTC-X 200 PLUS | 640 | 1260 | 1460 |
| FTC-X 270 PLUS | 640 | 1260 | 1460 |
| FTC-X 340 PLUS | 640 | 1260 | 1800 |
| FTC-X 410 PLUS | 640 | 1260 | 1800 |
| FTC-X 480 PLUS | 640 | 1260 | 2000 |
| FTC-X 550 PLUS | 640 | 1260 | 2000 |
| FTC-X 680 | 640 | 1260 | 2230 |
| FTC-X 760 | 640 | 1260 | 2230 |
| FTC-X 840 | 640 | 1260 | 2230 |
