Condensing Boilers

Wall Type Condensing Boilers

WT Series WT Series WT Series
WT Series
WT Series
WT Series
Download Product Visual

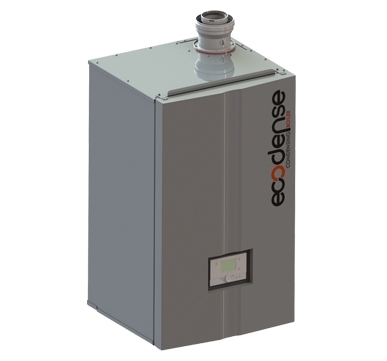

WT Series

  • High efficiency with Premix condensation technology and micro-flame metal fiber coated steel burner,
  • Aluminum alloy, spiral-fin heat exchanger providing high operating efficiency with high heat transfer,
  • A wide range of capacity (65, 80, 90, 100, 110, 115, 125 and 150 kW) in individual boilers and up to 2400 kW in CASCADE systems,
  • When used as Cascade, it provides connection and control opportunity for 16 boilers + 1 outdoor sensor + 1 mixing valve placed onto boiler,
  • Energy saving through 5:1 modulating operation,
  • Maximum air and water tightness with hermetic case,
  • Enhanced combustion efficiency with flash back flap,
  • Illuminated LCD panel for ease of use,
  • Daily and weekly operation schedule can be programmed,
  • Seasonal heat programming during summer and winter times,
  • Option of use with Natural gas and LPG,
  • Combi operation at lower noise values,
  • Eco-friendly heating systems with low NOx and CO emission rates,
TECHNICAL SPECIFICATIONS Unit WT
65		 WT
80		 WT
90		 WT
100		 WT
110		 WT
115		 WT
125		 WT
150
Thermal Capacity
Maximum Heating Capacity kW 65 80 90 100 110 115 125 143
Minimum Heating Capacity kW 14 14,1 14,1 14,2 20 20 20 20
Maximum Heat Output (80°C / 60°C) kW 63,4 76,4 88 98 108,5 112,7 122,5 138
Minimum Heat Output (80°C / 60°C) kW 13,7 13,8 13,8 13,9 19,4 19,4 19,5 19,5
Maximum Heat Output (50°C / 30°C) kW 69 85,6 95,2 105,0 114,9 121,0 131,0 151
Minimum Heat Output (50°C / 30°C) kW 15,1 15,3 15,3 15,4 21,3 21,3 21,5 21,5
Thermal Efficiency
Efficiency @ Pmax. (80°C / 60°C) % 97,5 95,5 97,8 98 98,6 98 98 96,5
Efficiency @ Pmin. (80°C / 60°C) % 97,9 97,9 97,9 97,9 97 97 97,5 97,5
Efficiency @ Pmax. (50°C / 30°C) % 106,2 107 105,8 105,0 104,5 105,2 104,8 105,6
Efficiency @ Pmin. (50°C / 30°C) % 107,9 108,5 108,5 108,5 106,5 106,5 107,5 107,5
Efficiency @ %30 (30°C) % 108,6 108,8 108,4 108,3 108,6 108,4 108,9 108,5
Domestic Hot Water Circuit
Temperature adjustment range with external storage tank usage °C 10-65 10-65 10-65 10-65 10-65 10-65 10-65 10-65
Central Heating Circuit
Maximum Operating Temperature °C 90 90 90 90 90 90 90 90
Water Volume L 5 5 5 7 7 7 7 9
Maximum Operating Pressure bar 6 6 6 6 6 6 6 6
Minimum Operating Pressure bar 1 1 1 1 1 1 1 1
Water Resistance ΔT = 20 °C  mbar 25 30 140 160 115 120 150 190
Gas Specifications
Gas Type - G20-G31 G20-G31 G20-G31 G20-G31 G20-G31 G20-G31 G20-G31 G20-G31
Gas Inlet Pressure (G20) mbar 20 20 20 20 20 20 20 20
Gas Inlet Pressure (G31) mbar 37 37 37 37 37 37 37 37
Maximum gas consumption Nm³/h 6,78 8,34 9,38 10,42 11,47 11,99 13,03 14,91
Minimum gas consumption Nm³/h 1,46 1,47 1,47 1,48 2,08 2,08 2,08 2,08
Combustion Specifications
Maximum Flue Gas Temperature (50°C / 30°C) °C 42 42 42 43 45 45 45 45
Maximum Flue Gas Temperature (80°C / 60°C) °C 57 57 57 58 58 58 58 58
NOx Emission Class (EN 15502-1+A1) - 6 6 6 6 6 6 6 6
Electrical Specifications
Electrical Supply V / Hz 230/50 230/50 230/50 230/50 230/50 230/50 230/50 230/50
Protection Class IP X4D X4D X4D X4D X4D X4D X4D X4D
Energy Consumption W 90 110 120 130 140 170 220 260
Fuse Current A 6 6 6 6 6 6 6 6
Circuit Specifications
Gas Connection Diameter inch 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4
Central Heating Circuit Inlet/Outlet Diameter inch 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2
General Specifications
Net Weight kg 65 75 75 75 75 85 88 92
Flue Diameter (Ø) mm 80/125 80/125 80/125 80/125 80/125 80/125 80/125 100/150
G 20 Natural Gas, G 31 LPG
 MODEL W
(mm)		 H
(mm)		 D
(mm)
WT 65 530 725 500
WT 80 530 725 500
WT 90 530 725 500
WT 100 530 725 500
WT 110 530 895 500
WT 115 530 895 500
WT 125 530 895 500
WT 150 540 950 500

  • DENGE KABI - RADYATÖR + BOYLER+GÜNEŞ ENERJİSİ DEVRE ŞEMASI
  • DENGE KABI - RADYATÖR + BOYLER DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - RADYATÖR + BOYLER + GÜNEŞ ENERJİSİ DEVRE ŞEMASI
  • DENGE KABI - KASKAD RADYATÖR + BOYLER 3 YOLLU VANALI DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - KASKAD RADYATÖR + 3 YOLLU VANALI DEVRE ŞEMASI
  • DENGE KABI - KASKAD RADYATÖR + BOYLER + GÜNEŞ ENERJİSİ DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - KASKAD RADYATÖR + BOYLER + GÜNEŞ ENERJİSİ DEVRE ŞEMASI
  • DENGE KABI - KASKAD RADYATÖR + YERDEN ISITMA + BOYLER DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - KASKAD RADYATÖR + BOYLER DEVRE ŞEMASI
  • WT SERIES FLOW DIAGRAM
  • ECODENSE WT CASCADE RADIATOR CIRCUIT DIAGRAM
  • ECODENSE WT RADIATOR + BOILER CIRCUIT DIAGRAM
  • WT Serisi AKIŞ ŞEMASI
  • DENGE KABI - BOYLER DEVRE ŞEMASI
  • DENGE KABI - RADYATÖR DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - RADYATÖR DEVRE ŞEMASI
  • DENGE KABI - YERDEN ISITMA DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - YERDEN ISITMA DEVRE ŞEMASI
  • DENGE KABI - YERDEN ISITMA + BOYLER DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - YERDEN ISITMA + BOYLER DEVRE ŞEMASI
  • DENGE KABI - RADYATÖR 3 YOLLU VANALI DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - RADYATÖR 3 YOLLU VANALI DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - RADYATÖR + BOYLER DEVRE ŞEMASI
  • DENGE KABI - YERDEN ISITMA + BOYLER + GÜNEŞ ENERJİSİ DEVRE ŞEMASI
  • PLAKALI EŞANJÖR - YERDEN ISITMA + BOYLER + GÜNEŞ ENERJİSİ DEVRE ŞEMASI
