Industrial Burners
Hot Air Burners

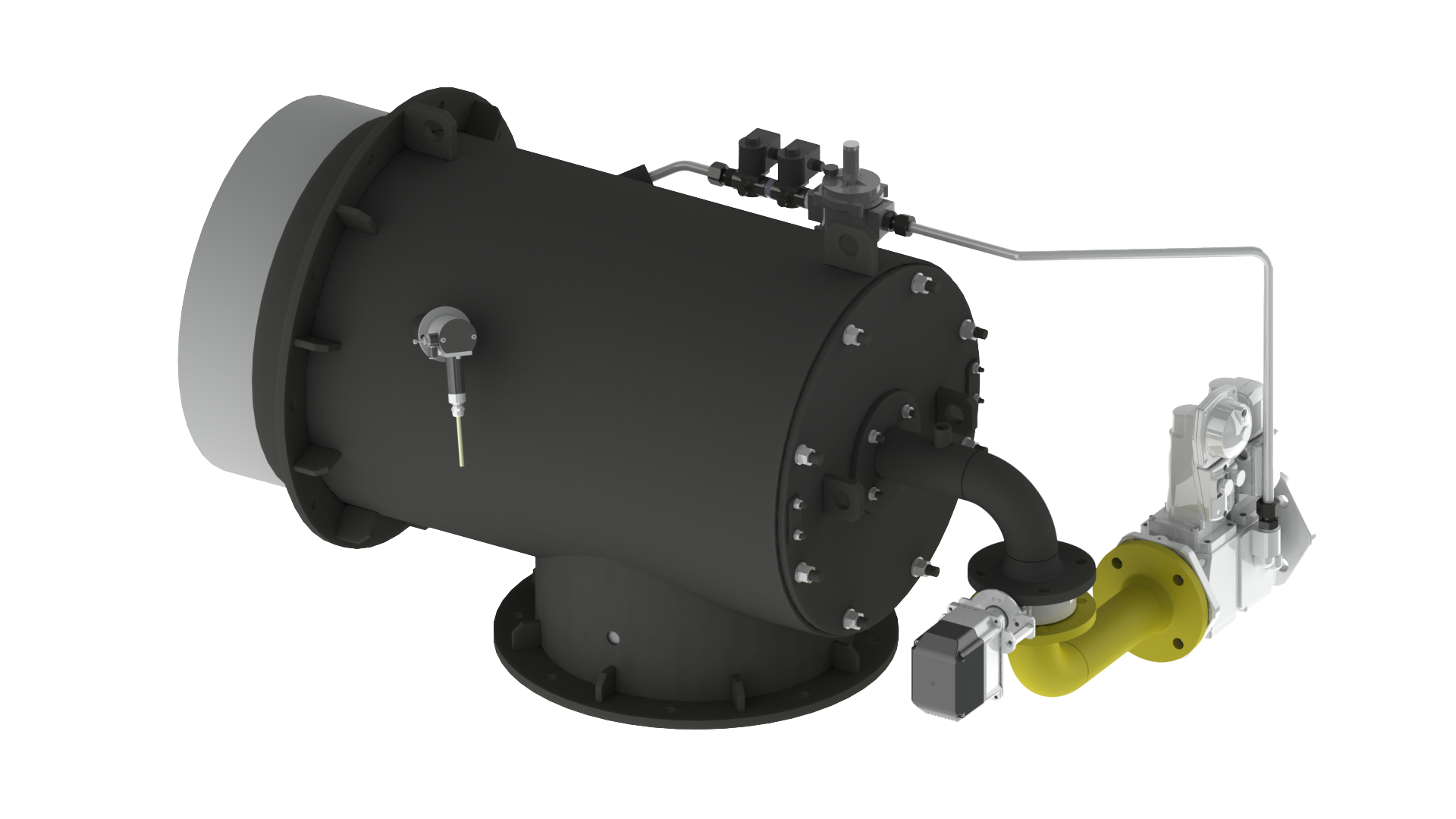

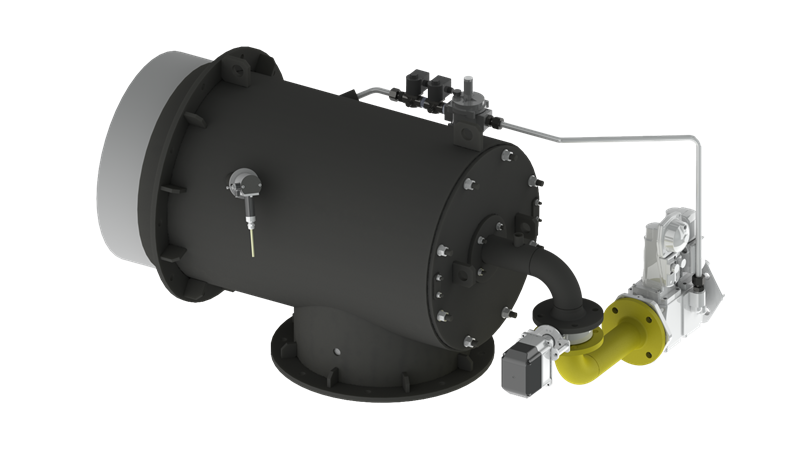

HOT AIR BURNER
- Operation with heated combustion air up to 800 °C,
- Thermal capacities from 500 kW up to 10000 kW,
- Firing with natural gas or LPG,
- Turndown ratio is up to 8:1 and more,
- Combustion air and fuel adjustment with servo motor,
- High thermal energy efficiency,
- High luminosity,
- Ignition with ECOSTAR pilot burner,
- Flame detection with photocell,
- O2 and CO combustion control integration,
- BMS or software connection for PLC control,
- Low pollutant NOx and CO emissions,
Main Using Applications:
- Low thermal capacity melting furnaces,
- Glass furnace finishing processes,
- Metal heating furnaces,
- Many different heating furnaces.
| SICAK HAVA BRÜLÖR ÜRÜN AİLESİ | ||||
|---|---|---|---|---|
| PRODUCT | NG CONSUMPTION | LPG CONSUMPTION | FLAME TUBE MATERIAL | COMBUSTION AIR TEMPERATURE |
| (m3/h) | (m3/h) | (°C) | ||
| ECO-HAB 0500 | 52,12 | 19,11 | Refractory | 0 - 800 |
| ECO-HAB 1000 | 104,24 | 38,22 | Refractory | 0 - 800 |
| ECO-HAB 2000 | 208,48 | 76,44 | Refractory | 0 - 800 |
| ECO-HAB 3000 | 312,73 | 114,67 | Refractory | 0 - 800 |
| ECO-HAB 4000 | 416,97 | 152,89 | Refractory | 0 - 800 |
| ECO-HAB 5000 | 521,21 | 191,11 | Refractory | 0 - 800 |
| ECO-HAB 6500 | 677,58 | 248,44 | Refractory | 0 - 800 |
| ECO-HAB 8000 | 833,94 | 305,78 | Refractory | 0 - 800 |
| ECO-HAB 10000 | 1042,42 | 382,22 | Refractory | 0 - 800 |
| SICAK HAVA BRÜLÖR ÜRÜN AİLESİ | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT | CAPACITY | NG CONSUMPTION | LPG CONSUMPTION | FLAME TUBE MATERIAL | COMBUSTION AIR TEMPERATURE | ||||
| (kW) | Btu/hr. | (m3/h) | scfh | (m3/h) | scfh | (°C) | °F | ||
| ECO-HAB 0500 | 500 | 1.706.070 | 52,12 | 1.944,12 | 19,11 | 712,84 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 1000 | 1.000 | 3.412.140 | 104,24 | 3.888,24 | 38,22 | 1.425,69 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 2000 | 2.000 | 6.824.280 | 208,48 | 7.776,48 | 76,44 | 2.851,38 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 3000 | 3.000 | 10.236.420 | 312,73 | 11.664,73 | 114,67 | 4.277,07 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 4000 | 4.000 | 13.648.560 | 416,97 | 15.552,97 | 152,89 | 5.702,76 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 5000 | 5.000 | 17.060.700 | 521,21 | 19.441,21 | 191,11 | 7.128,44 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 6500 | 6500 | 22.178.910 | 677,58 | 25.273,58 | 248,44 | 9.266,98 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 8000 | 8000 | 27.297.120 | 833,94 | 31.105,94 | 305,78 | 11.405,51 | Refractory | 0 - 800 | 32 - 1.472 |
| ECO-HAB 10.000 | 10.000 | 34.121.400 | 1.042,42 | 38.882,42 | 382,22 | 14.256,89 | Refractory | 0 - 800 | 32 - 1.472 |
