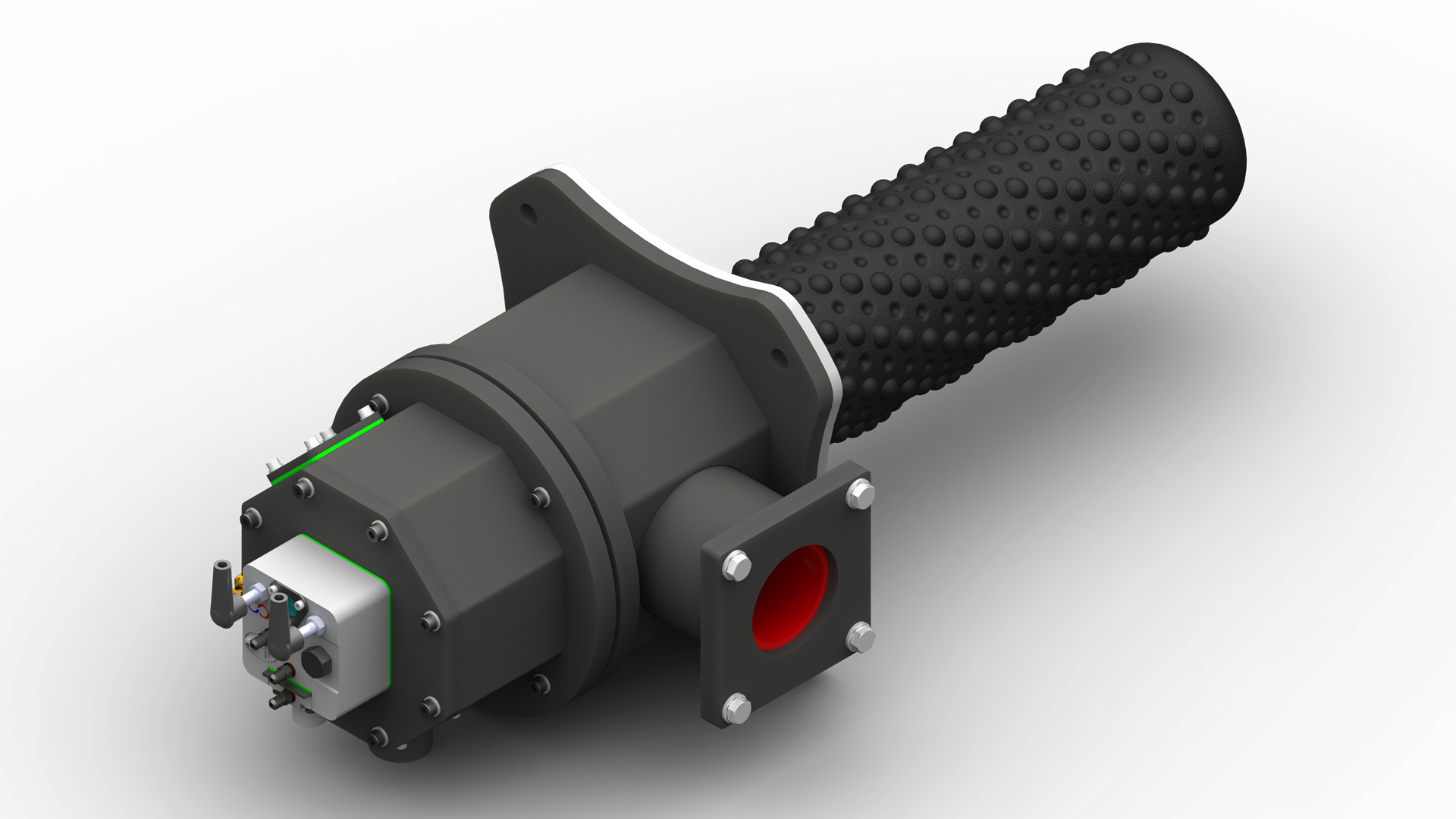

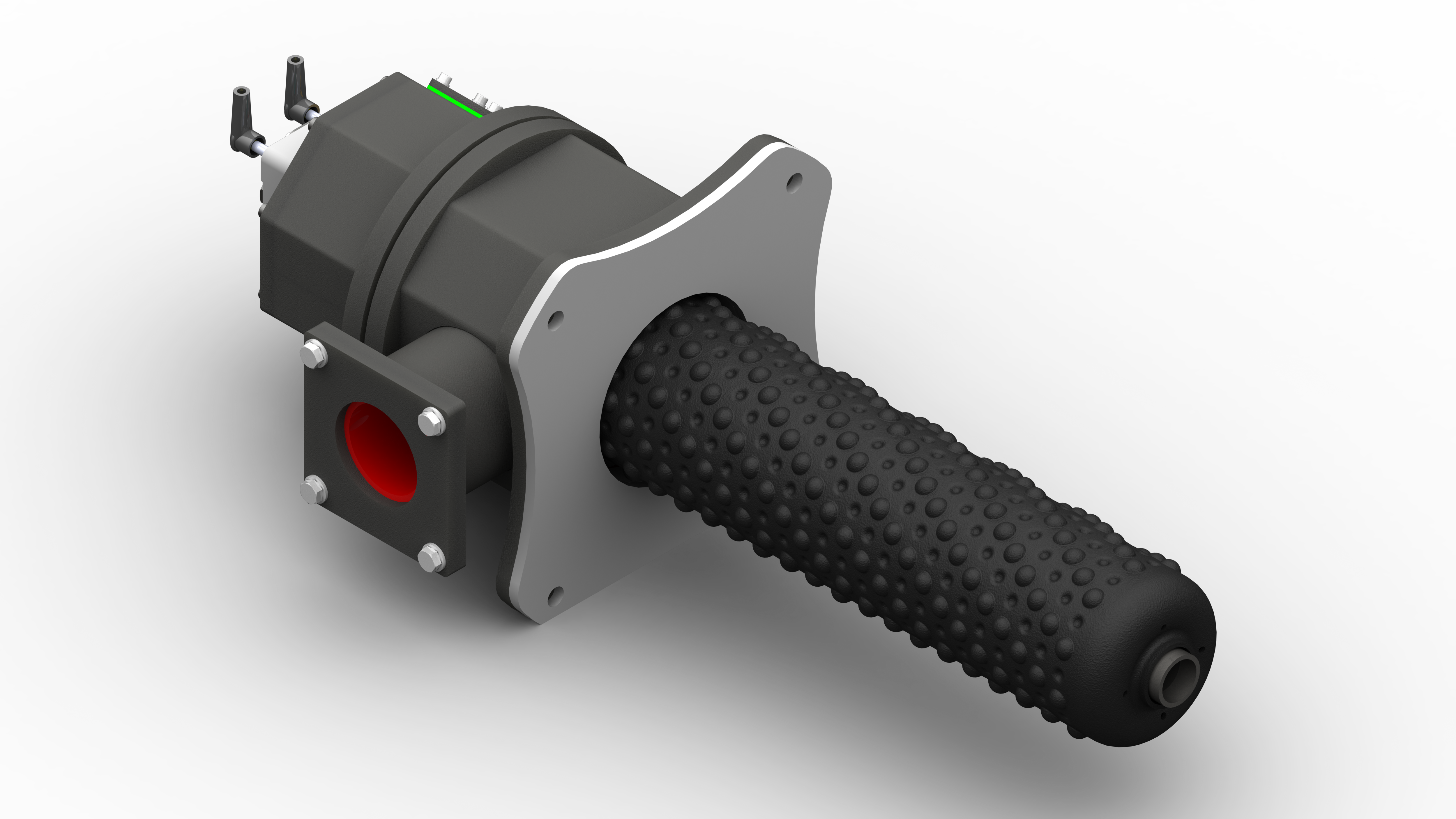

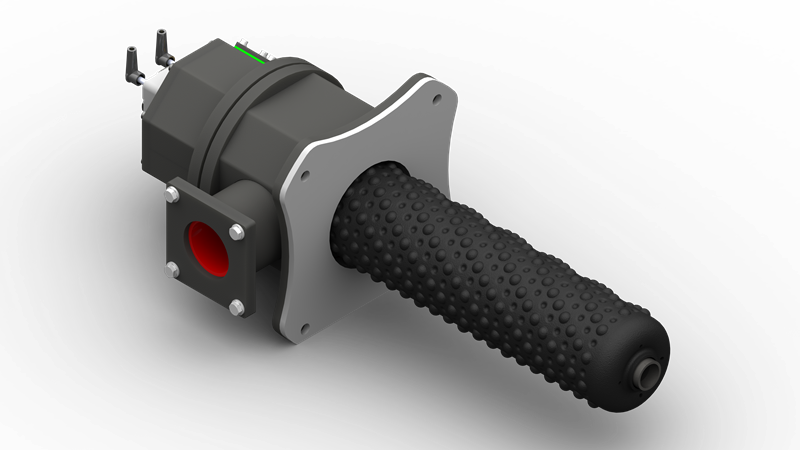

Recuperative Gas Burners
- Thermal capacities from 20 kW up to 150 kW,
- Firing with natural gas, and LPG,
- Electronic modulation ratio up to 5:1,
- Direct and indirect combustion,
- Combustion air and fuel adjustment with servo motor,
- High thermal energy efficiency ,
- Internal cooling purge air,
- External fuel cooling air connection,
- Direct ignition and ionization electrodes ,
- Eco friendly via clean combustion with low NOx and CO levels,
- Easy installation and maintenance,
- Optional flame detection with photocell,
- Optional O2 and CO combustion control integration,
- Optional BMS or software connection for PLC control,
Main Using Applications:
- Radiant tube heating,
- Industrial recuperative furnaces,
- Drying ovens,
- Paint finishing systems,
- Glass manufacturing,
- Ceramic Manufacturing,
| SELF RECUPERATIVE BURNER SERIES | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT | CAPACITY | NG CONSUMPTION | LPG CONSUMPTION | FLAME TUBE MATERIAL | FAN PRESSURE | MAX TEMPERATURE | AIR CONNECTION | GAS CONNECTION | PURGE AIR CONNECTION | COOLING AIR CONNECTION |
| (kW) (Btu/hr.) | (m3/h) | (m3/h) | (mbar) | (°C) | (°F) | |||||
| ECO-RECU-SC 020 | 20 | 2,08 | 0,76 | Silicon Carbide | 80 | 1350 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 035 | 35 | 3,65 | 1,34 | Silicon Carbide | 80 | 1350 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 045 | 45 | 4,69 | 1,72 | Silicon Carbide | 80 | 1350 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 060 | 60 | 6,25 | 2,29 | Silicon Carbide | 80 | 1350 | 1 1/2" | 1/2" | 1/4" | 1 1/2" |
| ECO-RECU-SC 100 | 100 | 10,42 | 3,82 | Silicon Carbide | 80 | 1350 | 1 1/2" | 1/2" | 1/4" | 1 1/2" |
| ECO-RECU-SC 150 | 150 | 15,64 | 5,73 | Silicon Carbide | 80 | 1350 | 2" | 1/2" | 1/4" | 2" |
| SELF RECUPERATIVE BURNER SERIES BTU | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT | CAPACITY | NG CONSUMPTION | LPG CONSUMPTION | FLAME TUBE MATERIAL | FAN PRESSURE | MAX TEMPERATURE | AIR CONNECTION | GAS CONNECTION | PURGE AIR CONNECTION | COOLING AIR CONNECTION | |
| (kW) | Btu/hr. | scfh | scfh | w.c. | (°F) | ||||||
| ECO-RECU-SC 020 | 20 | 68.243 | 77,76 | 28,51 | Silicon Carbide | 32" | 2462 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 035 | 35 | 119.425 | 136,09 | 49,90 | Silicon Carbide | 32" | 2462 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 045 | 45 | 153.546 | 174,97 | 64,16 | Silicon Carbide | 32" | 2462 | 1" | 1/2" | 1/4" | 1" |
| ECO-RECU-SC 060 | 60 | 204.728 | 233,29 | 85,54 | Silicon Carbide | 32" | 2462 | 1 1/2" | 1/2" | 1/4" | 1 1/2" |
| ECO-RECU-SC 100 | 100 | 341.214 | 388,82 | 142,57 | Silicon Carbide | 32" | 2462 | 1 1/2" | 1/2" | 1/4" | 1 1/2" |
| ECO-RECU-SC 150 | 150 | 511.821 | 583,24 | 213,85 | Silicon Carbide | 32" | 2462 | 2" | 1/2" | 1/4" | 2" |
