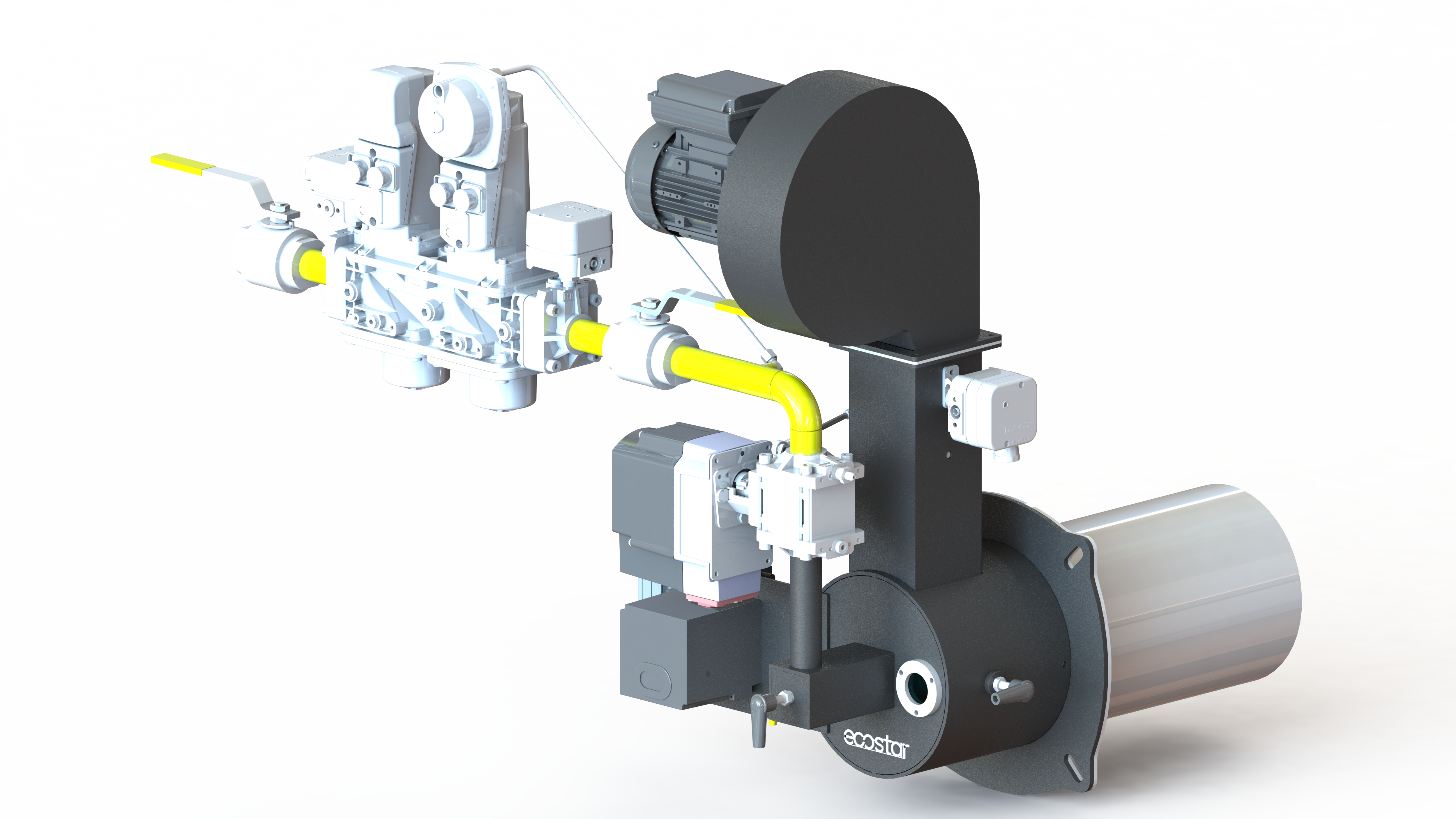

ECO GRM Series Gazoram Burners (GRM 30 NG-SE)

New Process Burners

ECO GRM Series Gazoram Burners (GRM 30 NG-SE)

GAZORAM burners are nozzle-mixed burners and used in industrial direct-heating furnaces and drying applications. These furnaces usually have a balanced pressure in the combustion chamber and require burners with wide operating ranges. GAZORAM burners have a simple operating logic and easily adapt to many applications with different installation options. Gazoram burners operate at gas pressure of 21 to 50 mbar.

AREAS OF USE

  • Textile machinery
  • Printing machines
  • Drying and hardening furnaces
  • Combustion furnaces
  • Indirect air heating
  • Textile drying
  • Food processing/cooking
  • Tempering
  • Aluminum homogenization
  • Conversion of ram-dryers working with hot oil and steam

SPECIFICATIONS

  • Operation in wide modulation range
  • 7 different capacity options in the range of 5-1160 kW
  • Operation with Natural gas and LPG
  • Flame control with ionization or photocell (optional)
  • Easy assembly and disassembly thanks to its design
  • Easy operation and maintenance

STANDARD EQUIPMENT

  • Electromagnetic safety and operating valve: An electromagnetic valve that ensures fully safe operation of the burner.
  • Servo motor air/fuel adjustment: Precise air-fuel adjustment is provided by mechanically modulating klappes.
  • Control Relay: Provides safe combustion control.
  • Gas Pressure Switch: The gas pressure switch on the operating valve controls the gas pressure and prevents any problems that may occur due to pressure drops in the system.
  • Air Pressure Switch: Ensures safety by checking for the availability of minimum combustion air required for safe combustion.
  • Ionization: Provides flame control for safe combustion.
  • Manometer: Ensures proper combustion settings and measuring of gas pressure.
  • Spherical Gas Shut-Off Valve: Allows cutting off the gas for safety and maintenance purposes
