Monoblock Burners
New Generation Low NOx (FGR) Gas Burners

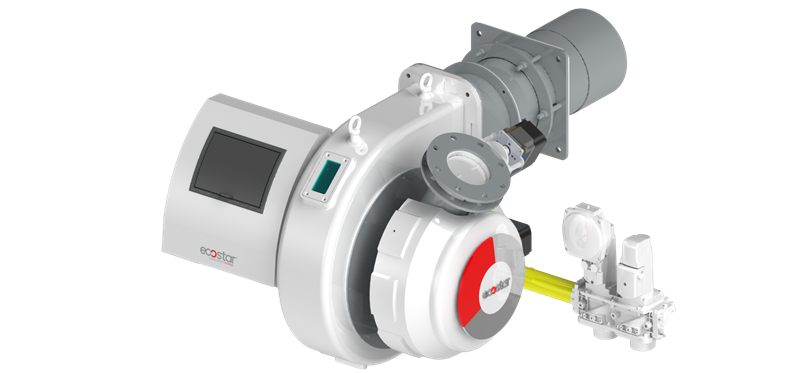

ECO NG LNX 90 G (FGR)
- Low NOx gas burner according to European Standard EN 676:2020, with class 3 NOx and CO emission,
- Operation in any type of combustion chamber according to the standard EN 303,
- Ultra Low NOx gas burner with FGR (Flue gas recirculation) feature,
- Wide adjustment range with electronic modulation feature,
- Modulation rate of 1:6
- High quality aluminum body,
- High-performance reverse wing; high fan efficiency with centrifugal fan; low electrical consumption; low noise level,
- Easy to remove combustion nozzle without dismounting the burner from the boiler thanks to the hinged system design,
- Integrated gas leak control unit,
- Use of ionization electrode or optional photocell for flame control,
- Precise air and gas FGR flow adjustment at minimum and maximum capacity with electric servomotor control,
- Adjustable combustion nozzle with specially designed stainless turbulator,
- Optional CO/O2 (trim) system integration for combustion optimization,
- User-friendly controller showing operating and troubleshooting status,
- Electronic control unit with failure and error code indicator according to European standard EN-298:2012
- Port connection for failure test,
- Opportunity of connecting micro ammeter on ionization cable,
- IP 44 electrical protection.
| Burner Type | Capacity | Capacity | Natural Gas Consumption | NOx Emissions | Fan Motor Power | Voltage at 50 Hz | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. kcal/h | Max. kcal/h | Min. kW | Max. kW | Min. Nm³/h | Max. Nm³/h | Standart mg/kWh | FGR mg/kWh | kW | VAC | |
| ECO NG LNX 90 G (FGR) | 154.800 | 774.000 | 180 | 900 | 18,76 | 93,82 | 80 | 50 | 1,5 | 3N 400 |
| * | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 | ØD2 | ØD3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECO NG LNX 90 G FGR | 1330 | 175 | 390 | 790 | 400 | 675 | 510 | 18 | 275 | 218 | 226 | 220 | 180 |
*All dimensions in mm.
| SPECIFICATIONS | ECO NG LNX 90 G (FGR) |
|---|---|
| Control Type | O |
| Electronic Modulating | |
| Air flow adjustment | SM |
| Fuel flow adjustment | SM |
| Flue gas recirculation adjustment | SM |
| Gas Valve | |
| Ignition | DA |
| Minimum gas pressure switch | |
| Maximum gas pressure switch | |
| Gas Leak Control | |
| Air pressure switch | |
| Air inlet muffler cover (CTP) | |
| Flame control | İO |
| UV flame control | |
| Hinged body for servicing purposes | |
| Flue gas recirculation connection (BT 340 controller) | |
| Movable flame tube extension | |
| O2-CO combustion management system connection | |
| Combustion air fan inverter connection | |
| Fuel preparation stations (Gas line) | |
| Complies with TS EN 676 A2 and 2016/426/EC GAR | |
| Electrical protection class | IP54 |
: Not Included / N/A
: Optional
: Included / Available
1K: Single Stage
2K: Two Stage
O: Modulating
M: Manuel
SM: Servomotor
İO: Ionization
F: Photocell
DA: Direct Ignition
PA: Pilot Ignition
