Burner Type | Burner Capacity | Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | |
---|---|---|---|---|---|
Max. MW | Max. kcal/h | Max. Nm³/h | Max. kg/h | Max. kg/h | |

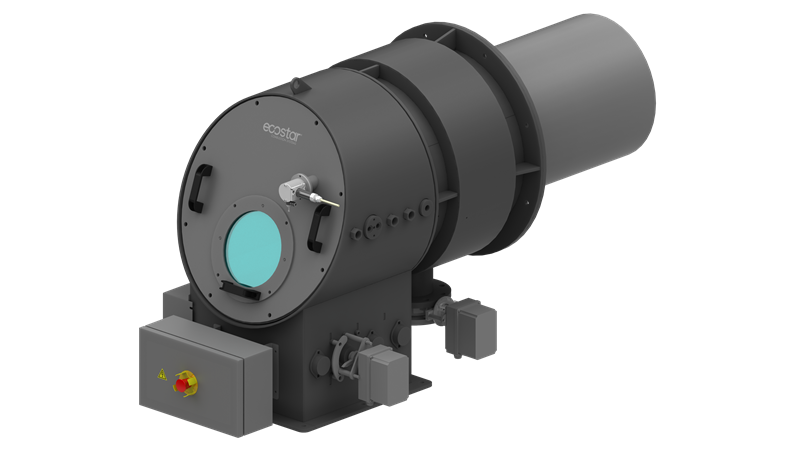

ECO-250.1 | 1,9 | 1.600.000 | 194 | 157 | 166 |
* | ØD | L | E | H | F | C | K | S1 | S2 | S3 | ØM1 | ØM2 | ØM3 | VL | DN |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ECO 250 OS 1 | Ø219 | 1600 | 650 | 875 | 500 | 1100 | 725 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 320 | |
ECO 250 KS 1 | Ø219 | 1600 | 650 | 875 | 500 | 1100 | 725 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 320 | DN50 |
ECO 250 G 1 | Ø264 | 1600 | 650 | 875 | 500 | 700 | 325 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 320 | DN50 |
ECO 250 G 1 | Ø296 | 1850 | 650 | 875 | 500 | 700 | 325 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 570 | DN50 |
ECO 250 OL 1 | Ø219 | 1600 | 650 | 875 | 500 | 1100 | 725 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 320 | |
ECO 250 KL 1 | Ø219 | 1600 | 650 | 875 | 500 | 1100 | 725 | 250 | 300 | 340 | Ø330 | Ø380 | Ø450 | 320 | DN50 |
*All dimensions in mm.
SPECIFICATIONS | ECO 250 ME |
---|---|
Electronic modulating control option | |
Mechanical modulating control option | |
Photocell flame control | |
Internal pilot ignition | |
ECOSTAR PAL pilot ignition burner | |
Pilot ignition gas valve | |
Air pressure switch | |
Options of operating with Gas / Heavy Oil / Light Oil / Gas-Light Oil / Gas-Heavy Oil | |
In liquid fuel products, high-pressure mechanic atomization lance or low-pressure air/steam-atomization lance | |
Ability to operate with hot combustion air* | |
Different mounting options | |
Serviceability without dismounting the burner from the boiler /service cover | |
Different flame tube length | |
Control via PLC with BMS or software | |
O2-CO combustion management system connection | |
Combustion air fan inverter connection | |
Fuel preparation stations (Gas line/Heavy Oil Station/Light Oil Station) | |
TSE EN Declaration of Conformity | |
CE Declaration of Conformity |
: Not Included / N/A
: Optional
: Included / Available
ME: Mechanical Modulating
EL: Electronic Modulating
