Industrial Burners

DIB

  • ECOSTAR DIB series industrial burners with duoblock body structure are used in steam boilers, hot oil boilers, start-up applications and hot air generators.
  • Natural gas, LPG, Heavy Oil, Light Oil, Biogas and special fuels can be used.
  • With different combustion nozzle designs and flame pipe lengths suitable for the process, it can work in harmony in different combustion chambers, including modernized applications.
  • Able to operate at combustion air fan suitable for the process and at 200°C combustion air temperatures. (It is painted with high temperature resistant paint; product capacity varies in hot air operation.)
  • Suitable for manufacturing from completely stainless material in processes that require chemical resistance.
  • Possible to request as mechanical, electronic and modulating depending on the process needs.
  • Light oil filtering and pumping station is produced externally according to customer demand.
  • Light oil filtering, heating and pumping station are produced externally according to customer demand.
  • Special design pilot ignition burners are available for ignition (ECOSTAR PAL burner is standard in DIB-500 series and above).
  • Combustion optimization with O2-CO trim system adaptation in electronic proportional burners, if demanded.
  • Energy saving with fan speed control in electronic proportional burners, if demanded.
  • Remote management by connecting to PLC systems using BMS (Burner Management System) or software.
  • High fire safety thanks to flame control with photocell.
Burner Type Burner Capacity Natural Gas Consumption Diesel Consumption Fuel Oil Consumption
  Max. MW Max. kcal/h Max. Nm³/h Max. kg/h Max. kg/h
DIB-400.1 7,8 6.708.000 813 658 695

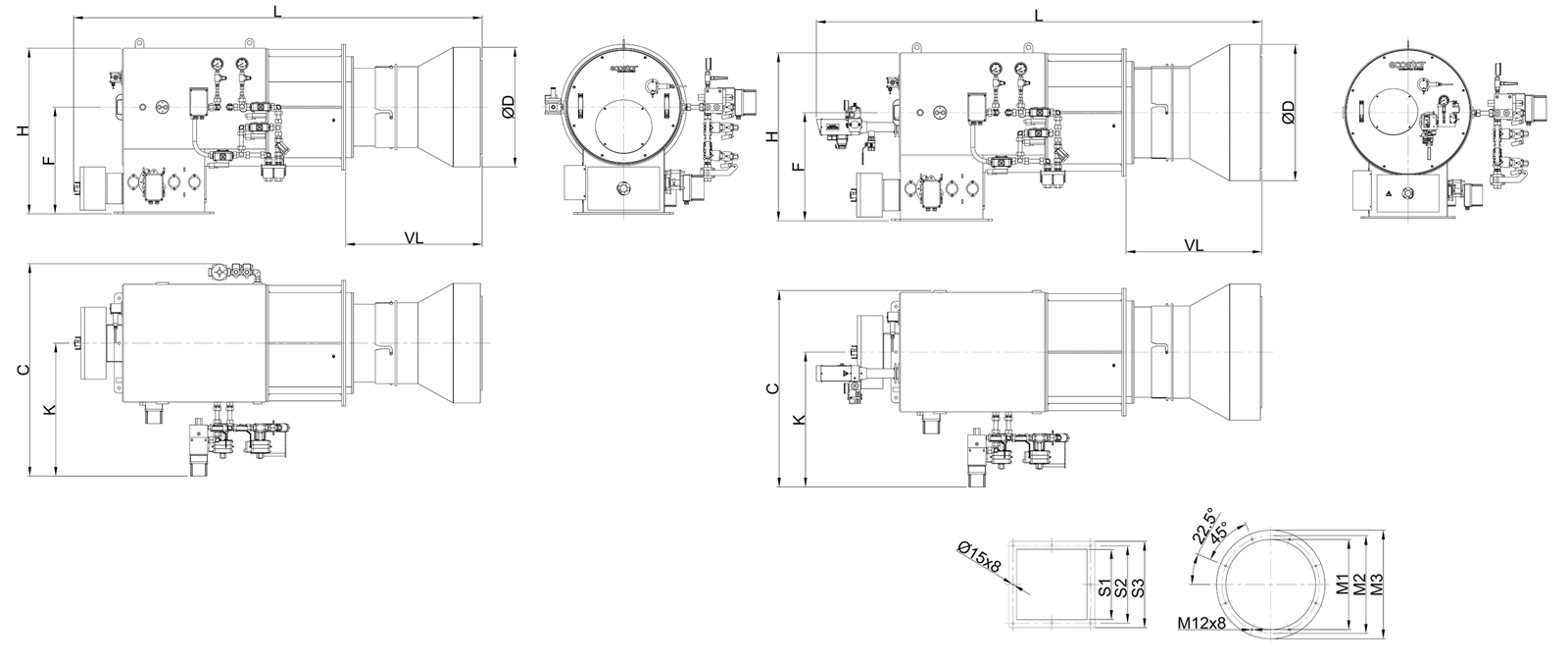

 * ØD L H F C K S1 S2 S3 ØM1 ØM2 ØM3 VL DN
DIB 401 EL 1 Ø393 1750 920 550 1300 900 400 450 510 Ø480 Ø530 Ø600 370
DIB 401 EL 1 Ø590 2050 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 670
DIB 401 MS 1 Ø393 1750 920 550 1300 900 400 450 510 Ø480 Ø530 Ø600 370
DIB 401 MS 1 Ø590 2050 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 670
DIB 401 N 1  Ø422 1750 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 370 DN80
DIB 401 N 1  Ø358 2050 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 670 DN80
DIB 401 NEL 1  Ø393 1750 920 550 1300 900 400 450 510 Ø480 Ø530 Ø600 370 DN80
DIB 401 NEL 1  Ø590 2050 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 670 DN80
DIB 401 NMS 1  Ø393 1750 920 550 1300 900 400 450 510 Ø480 Ø530 Ø600 370 DN80
DIB 401 NMS 1  Ø590 2050 920 550 900 500 400 450 510 Ø480 Ø530 Ø600 670 DN80

*All dimensions in mm.

SPECIFICATIONS DIB 401 ME DIB 401 EL
Electronic modulating control option
Mechanical modulating control option
Photocell flame control
Internal pilot ignition
ECOSTAR PAL pilot ignition burner
Pilot ignition gas valve
Air pressure switch
Options of operating with Gas / Heavy Oil / Light Oil / Gas-Light Oil / Gas-Heavy Oil
In liquid fuel products, high-pressure mechanic atomization lance or low-pressure air/steam-atomization lance
Ability to operate with hot combustion air*
Different mounting options
Serviceability without dismounting the burner from the boiler / service cover
Different flame tube length
Control via PLC with BMS or software
O2-CO combustion management system connection
Combustion air fan inverter connection
Fuel preparation stations (Gas line/Heavy Oil Station/Light Oil Station)
TSE EN Declaration of Conformity
CE Declaration of Conformity

: Not Included / N/A

: Optional

: Included / Available

ME: Mechanical Modulating

EL: Electronic Modulating
