Monoblock Burners

Modulating Light Oil Burners

ECO 55 O (L) C 3a

  • Modulating operation,
  • Mechanical and electronic modulating control options,
  • Wide thermal capacity adjustment range according to the heat requirement,
  • Direct ignition and optional pilot ignition,
  • Flame control with ignition and photocell,
  • Uniform fuel mixture with a unique combustion head with high combustion efficiency,
  • Combustion air control with air pressurestat,
  • High efficiency operation thanks to air flow rate adjustment from both the suction and the barrel,
  • Operation at low noise levels with its aluminum alloy, light body,
  • Minimum friction losses on body and combustion nozzle,
  • Combustion air flow adjustment with internal fan flap,
  • Easy access to all parts without dismounting the burner from the boiler,
  • High pressure mechanical atomization at nozzle,
  • Sliding flange for connection to different boiler types,
  • Compact design requiring minimal maintenance.
Burner Type Capacity Capacity Fuel Oil Consumption Fan Motor Power Fuel Pump Power Voltage at 50 Hz
Min. kcal/h Max. kcal/h Min. kW Max. kW Min. kg/h Max. kg/h kW kW VAC
ECO 55 O (L) C 3a 387.000 2.121.600 449 2469 38,00 208,00 3 - 3N 400

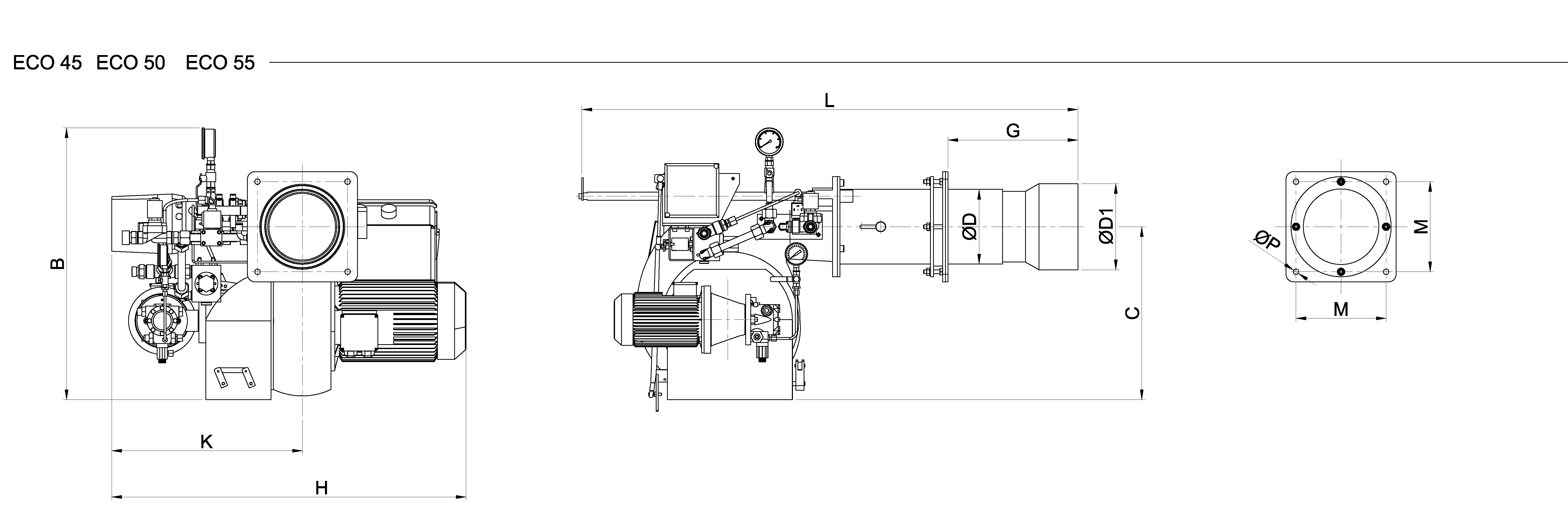

 * L Gmin Gmax H K B C ØP M ØD ØD1
ECO 55 O (L) C 3a 1370 280 440 1000 520 590 422 18 275 218 236

*All dimensions in mm.

SPECIFICATIONS ECO 55 O (L) C 3a
Control Type O
Mechanical Modulating
Electronic Modulating
Air flow adjustment SM
Pilot ignition DA
Pilot gas valve
Flame control F
Liquid fuel pumps and fuel hoses
Handling Shaft for Servicing
Different flame tube length
O2-CO combustion management system connection
Combustion air fan inverter connection
Fuel Preparation Stations (Light Oil Station)
TSE EN267+A1 Burners-Compatibility for Liquid Fuels
CE Declaration of Conformity
Electrical protection class IP40

: Not Included / N/A

: Optional

: Included / Available

1K: Single Stage

2K: Two Stage

O: Modulating

M: Manuel

SM: Servomotor

İO: Ionization

F: Photocell

DA: Direct Ignition

PA: Pilot Ignition
