Monoblock Burners
HP Series Two Stage Gas Burners

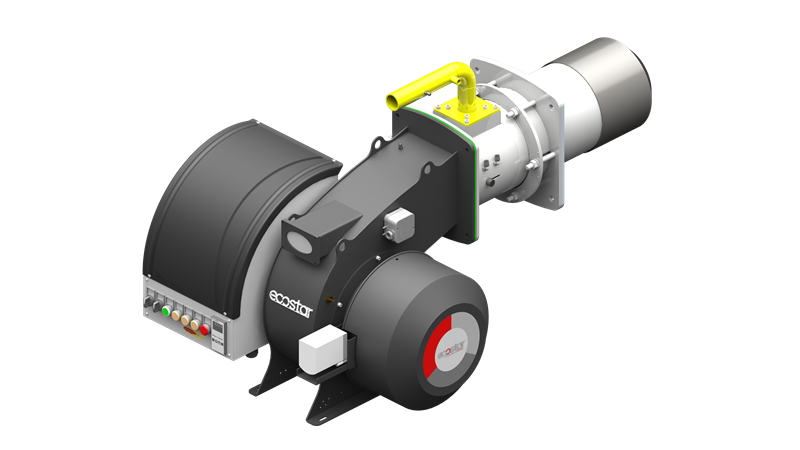

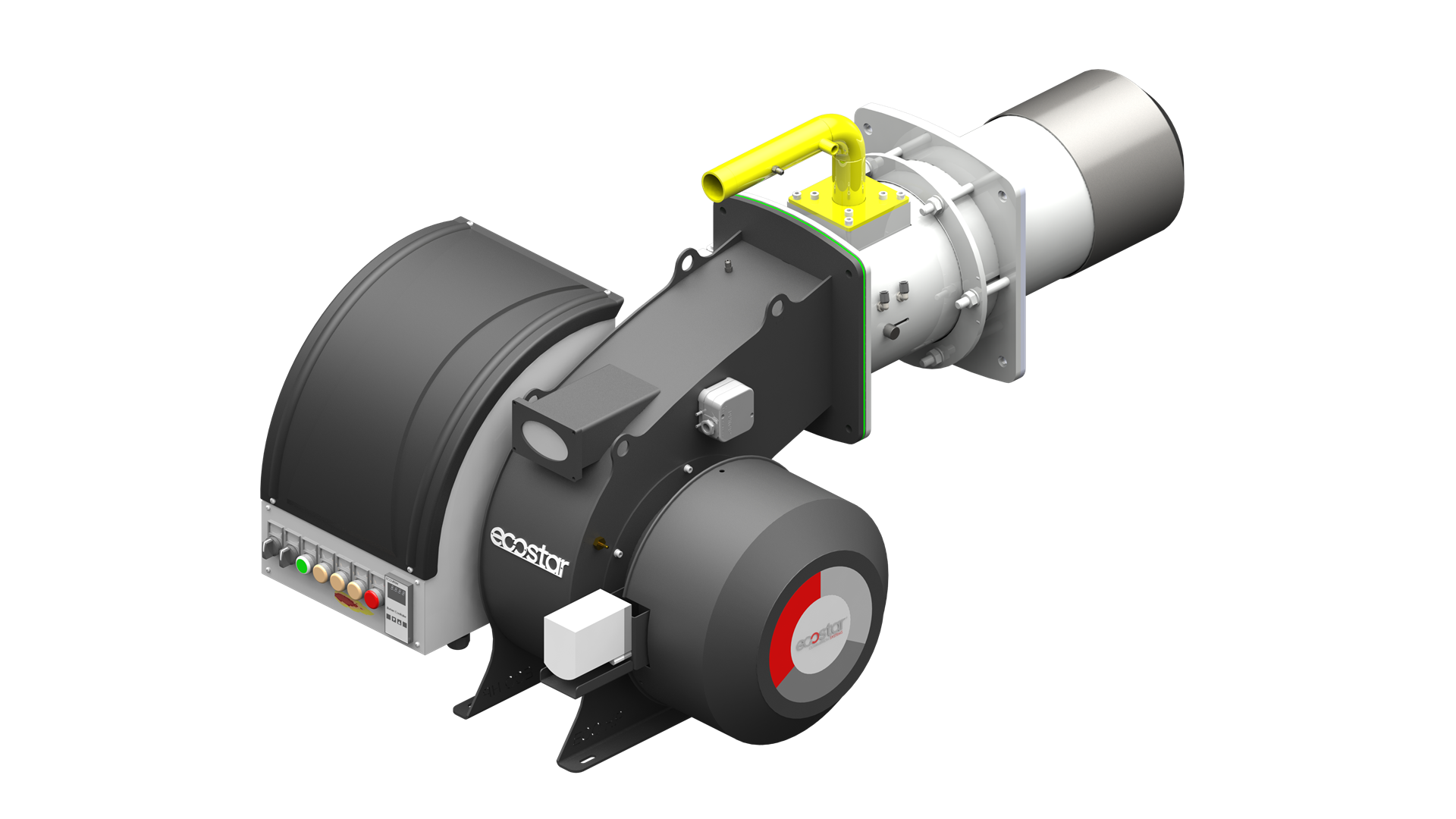

ECO 2000 HP GC 2
- Two stage operation,
- Natural gas and LPG fuel usage,
- Possibility to operate at 300 mbar and 21 mbar gas pressures,
- Wide thermal capacity range according to heat demand,
- Direct ignition and optional pilot ignition,
- Supply gas pressure control with minimum gas pressure switch,
- Combustion air control with air pressure switch,
- High combustion efficiency, uniform fuel and air mixing with original combustion head,
- Sliding flange for different boiler types,
- Working at low noise levels with light aluminum alloy body,
- Minimum friction losses throughout the body and combustion head,
- Flame control with ignition and ionization electrodes,
- Easy access to all parts without dismantling the burner from the boiler,
- Compact design with minimum maintenance,
- Environmentally friendly with low CO and NOx emissions.
- Working at low sound levels with to the specially designed burner body.
- Ease of maintenance with the hinged system without the need to separate the burner from the boiler,
| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Main Supply | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Maximum Nm³/h | kW | VAC | Gaz Valve | Gaz Inlet Diameter | |
| ECO 2000 HP GC 2 2" | 473.00 | 1.720.000 | 550 | 2000 | 57 | 208 | 3 | 3N 400 | MB-ZRDLE 420 | 2" |
| ECO 2000 HP GC 2 1 1/2" -S | VGD 20.4011 | 1 1/2" | ||||||||
| ECO 2000 HP GC 2 2" -S | VGD 20.5011 | 2" | ||||||||
| ECO 2000 HP GC 2 DN65 | VGD 20.4065 | DN65 | ||||||||
| Specifications | ECO 2000 HP GC 2 2" | ECO 2000 HP GC 2 1 1/2" -S | ECO 2000 HP GC 2 2" -S | ECO 2000 HP GC 2 DN65 |
|---|---|---|---|---|
| Control Type | 2K | 2K | 2K | 2K |
| Air Flow Rate Setting | SM | SM | SM | SM |
| Adjustable Flame Tube Extension | ||||
| Gas Valve | ||||
| Minimum Gas Processore | ||||
| Maximum Gas Processore | ||||
| Air Processore | ||||
| Flame Control | İO | İO | İO | İO |
| Ignition | DA | DA | DA | DA |
| VPS Gas Leak Detector | ||||
| Sliding Boiler Connection Flange | ||||
| Service Shaft | ||||
| 7 Pin Power Supply and First Stage Socket | ||||
| 7 Pin Second Stage Connection Socket | ||||
| Compatible with TS EN 676+A2 ve 2016/426/EC GAR | ||||
| Electrical Protection Class | IP54 | IP54 | IP54 | IP54 |
:Not Included/N/A
:Optional
:Included/Available
1K:1 Stage
2K:2 Stage
O: Modulating
M: Manual
SM: Servomotor
İO: Ionization
F:Photocell
DA: Direct Ignition
PA: Pilot Ignition
