One-Stage Gas + Light Oil Dual Burners

Download Product Visual

Single-stage operation with natural gas and light oil,
Wide range of thermal capacity adjustment according to the heat requirement,
Direct ignition and optional pilot ignition,
Flame control with ignition and photocell,
Uniform fuel mixture with a unique combustion head with high combustion efficiency,
Combustion air control with air pressurestat,
Operation at low noise levels with its aluminum alloy, light body,
Minimum friction losses on body and combustion nozzle,
Combustion air flow adjustment with internal fan flap,
Easy access to all parts without dismounting the burner from the boiler,
High pressure mechanical atomization at nozzle,
Specially-designed, compact pre-heater, safety, operation and limiting thermostat
Sliding flange for connection to different boiler types,
Compact design requiring minimal maintenance.

Burner Type	Gas Capacity		Gas Capacity		Natural Gas Consumption		Diesel Capacity		Diesel Capacity		Diesel Consumption		Fan Motor Power	Fuel Pump Power	Voltage at 50 Hz
Burner Type		Min. kcal/h	Max. kcal/h	Min. kW	Max. kW	Min. Nm³/h	Max. Nm³/h	Min. kcal/h	Max. kcal/h	Min. kW	Max. kW	Min. kg/h	Max. kg/h	kW	kW	VAC
ECO 2 K L C 1	51.600	172.000	60	200	6,3	20,8	77.400	144.480	90	168	7,6	14,2	0,15	0,15	1N 240

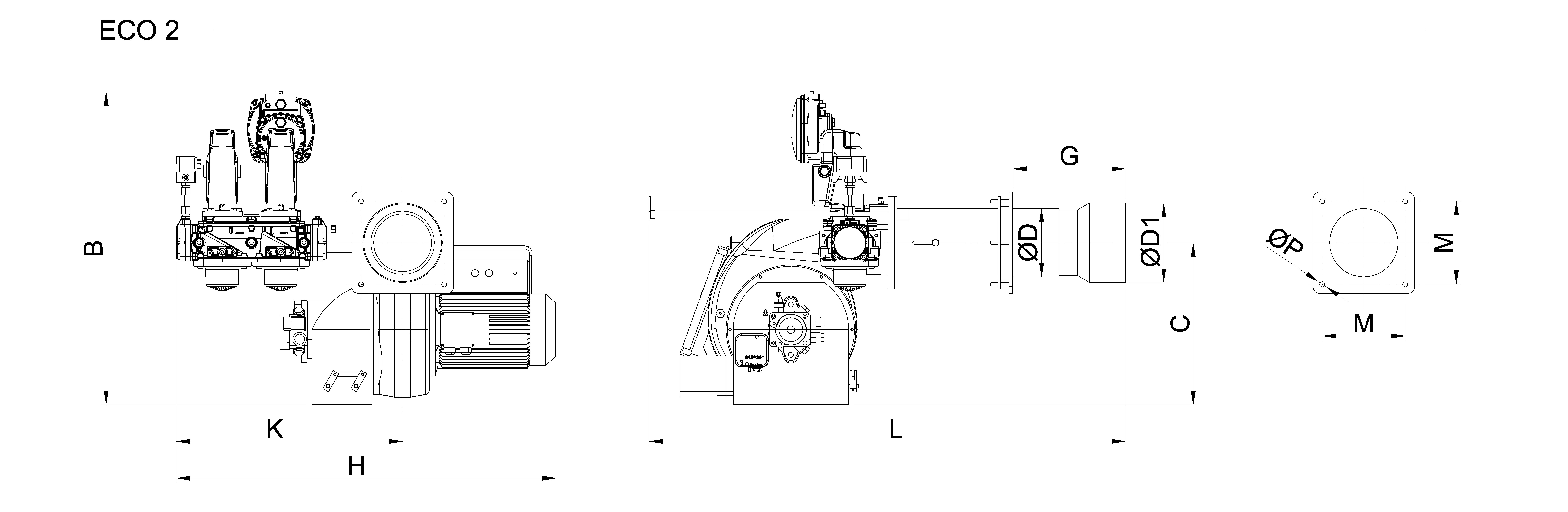

*	L	Gmin	Gmax	H	K	B	C	ØP	M	ØD	ØD1
ECO 2 K L C 1	950	106	320	560	335	320	230	10	142	120	139

*All dimensions in mm.

SPECIFICATIONS	ECO 2 K L C 1
Control Type	1K
Air flow setting	M
Gas Valve
Minimum gas processor
Maximum gas processor
Air processor
Oil pump and fuel hoses
Flame Control	F
VPS Gas leak device
Sliding boiler connection flange
Service shaft
Compatible with TS EN 676+A2, TSE EN 267 +A1 and 2016/426/EC GAR
Electrical protection class	IP40

: Not Included / N/A

: Optional

: Included / Available

1K: Single Stage

2K: Two Stage

O: Modulating

M: Manuel

SM: Servomotor

İO: Ionization

F: Photocell

DA: Direct Ignition

PA: Pilot Ignition
