One-Stage Light Oil Burners

Download Product Visual

Single-stage operation,
Wide thermal capacity adjustment range according to the heat requirement,
Direct ignition and optional pilot ignition,
Flame control with ignition and photocell,
Uniform fuel mixture with a unique combustion head with high combustion efficiency,
Combustion air control with air pressurestat,
High efficiency operation thanks to air flow rate adjustment from both the suction and the barrel,
Operation at low noise levels with its aluminum alloy, light body,
Minimum friction losses on body and combustion nozzle,
Combustion air flow adjustment with internal fan flap,
Easy access to all parts without removing the burner from the boiler,
High pressure mechanical atomization at nozzle,
Sliding flange for connection to different boiler types,
Compact design requiring minimal maintenance.

Burner Type	Capacity		Capacity		Fuel Oil Consumption		Fan Motor Power	Fuel Pump Power	Voltage at 50 Hz
Burner Type		Minimum kcal/h	Maximum kcal/h	Minimum kW	Maximum kW	Minimum kg/h	Maximum kg/h	kW	kW	VAC
ECO 30 O (L) C 1	112.200	346.800	130	403	11	34	0,37	-	3N 400

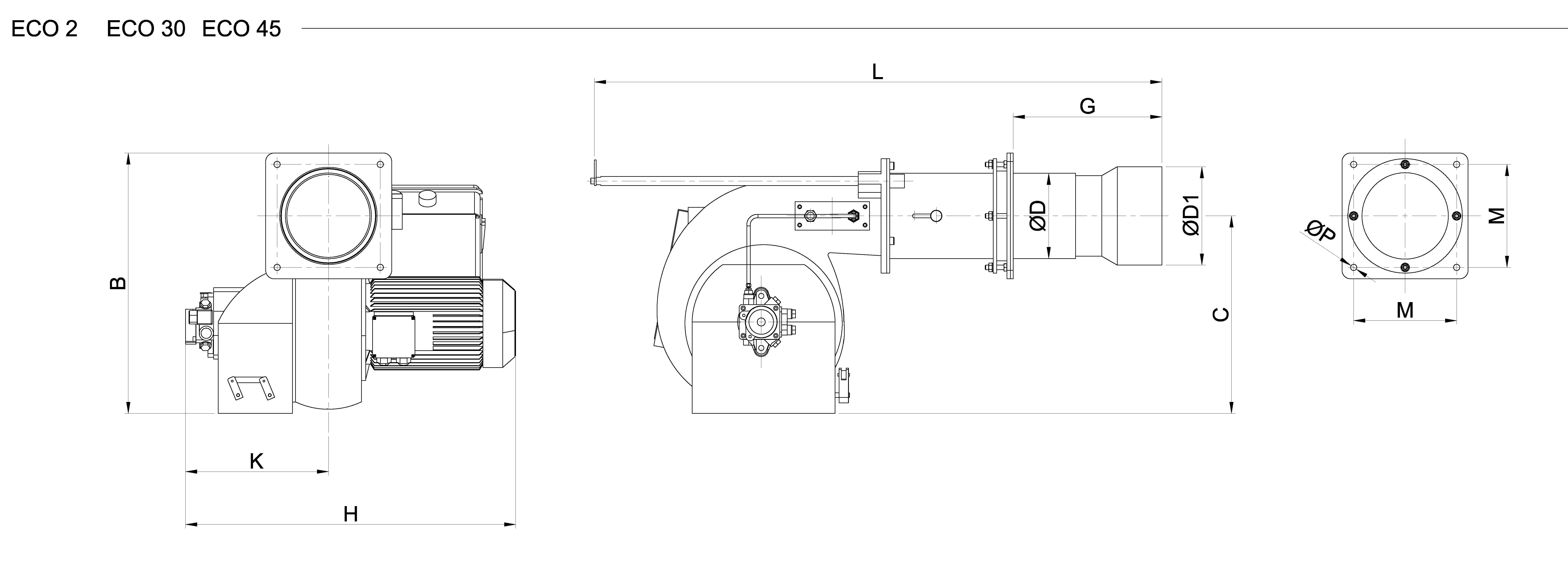

*	L	Gmin	Gmax	H	K	B	C	ØP	M	ØD	ØD1
ECO 30 O (L) C 1	790	130	250	545	240	400	305	10	142	130	153

*All dimensions in mm.

SPECIFICATIONS	ECO 30 O (L) C 1
Control Type	1K
Air flow adjustment	M
Flame control	F
Ignition	DA
Liquid fuel pumps and fuel hoses
Handling Shaft for Servicing
Different flame tube length
Fuel Preparation Stations (Light Oil Station)
Complies with TS EN 676+A2 and 2016/426/EC GAR
CE declaration of conformity
Electrical protection class	IP40

: Not Included / N/A

: Optional

: Included / Available

1K: Single Stage

2K: Two Stage

O: Modulating

M: Manuel

SM: Servomotor

İO: Ionization

F: Photocell

DA: Direct Ignition

PA: Pilot Ignition
