Burner Type | Capacity | Capacity | Fuel Oil Consumption | Fan Motor Power | Fuel Pump Power | Voltage at 50 Hz | |||
---|---|---|---|---|---|---|---|---|---|
Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum kg/h | Maximum kg/h | kW | kW | VAC | |
ECO 2 O (L) C 1 | 81.600 | 153.000 | 95 | 178 | 8 | 15 | 0,37 | - | 3N 400 |

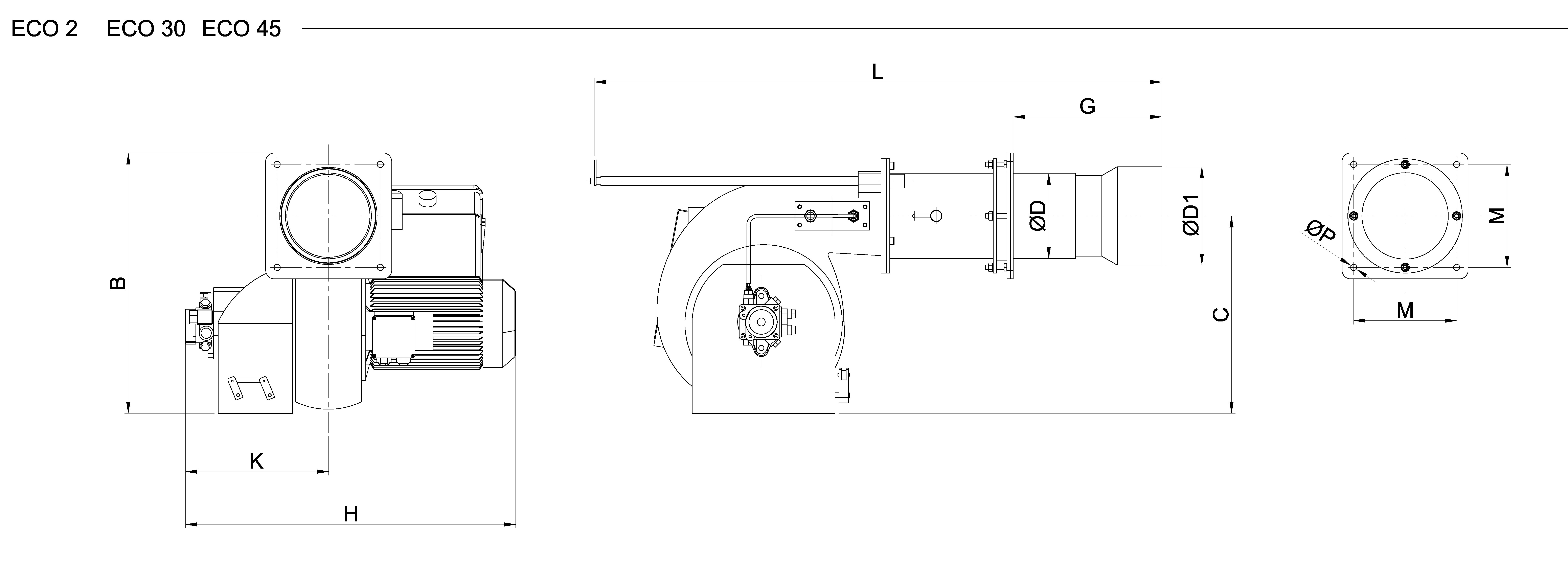

* | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 |
---|---|---|---|---|---|---|---|---|---|---|---|
ECO 2 O (L) C 1 | 820 | 106 | 290 | 390 | 220 | 320 | 230 | 10 | 142 | 120 | 139 |
*All dimensions in mm.
SPECIFICATIONS | ECO 2 O (L) C 1 |
---|---|
Control Type | 1K |
Air flow adjustment | M |
Flame control | F |
Ignition | DA |
Liquid fuel pumps and fuel hoses | |
Handling Shaft for Servicing | |
Different flame tube length | |
Fuel Preparation Stations (Light Oil Station) | |
Complies with TS EN 676+A2 and 2016/426/EC GAR | |
CE declaration of conformity | |
Electrical protection class | IP40 |
: Not Included / N/A
: Optional
: Included / Available
1K: Single Stage
2K: Two Stage
O: Modulating
M: Manuel
SM: Servomotor
İO: Ionization
F: Photocell
DA: Direct Ignition
PA: Pilot Ignition
